196928 FESTO
Weight | 0.06 kg |
country of origin | Germany |
direction of flow | reversible |
duty cycle | 100 % |
pilot air supply | external |
pilot pressure [bar] | 3÷8 |
type | solenoid valve |
valve function | 5/2-way, monostable |
working medium | Sprężone powietrze wg ISO8573-1:2010 [7:4:4] |
working pressure [bar] | -0,9÷10 |

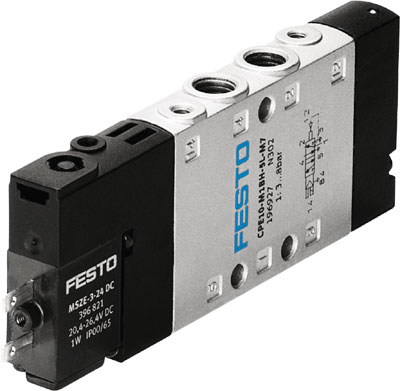

CPE10-M1BH-5LS-M7 FESTO
Solenoid valve
Feature | Value |
---|---|
Valve function | 5/2 monostable |
Type of actuation | electrical |
Width | 10 mm |
Standard nominal flow rate | 350 l/min |
Operating pressure | -0.9 ... 10 bar |
Design structure | Piston slide |
Type of reset | Air spring |
Authorisation | c UL us - Recognized (OL) |
Maritime classification | see certificate |
Protection class | IP65 with plug socket to IEC 60529 |
Nominal size | 4 mm |
Exhaust-air function | throttleable |
Sealing principle | soft |
Assembly position | Any |
Manual override | with accessories, detenting Pushing |
Type of piloting | Piloted |
Pilot air supply | external |
Flow direction | reversible |
Valve position identification | Inscription label holder |
Overlap | Positive overlap |
Pilot pressure | 3 ... 8 bar |
Switching time off | 20 ms |
Switching time on | 16 ms |
Duty cycle | 100% with holding current reduction |
Max. positive test pulse with logic 0 | 1,200 µs |
Max. negative test pulse with logic 1 | 900 µs |
Characteristic coil data | 24 V DC: 1.28 W |
Permissible voltage fluctuation | -15 % / +10 % |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Vibration resistance | Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
Medium temperature | -5 ... 50 °C |
Pilot medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Ambient temperature | -5 ... 50 °C |
Product weight | 56 g |
Electrical connection | 2-pin |
Mounting type | with through hole |
Pilot exhaust port 82 | M3 |
Pilot exhaust port 84 | M3 |
Pilot air port 12 | M3 |
Pilot air port 14 | M3 |
Pneumatic connection, port 1 | M7 |
Pneumatic connection, port 2 | M7 |
Pneumatic connection, port 3 | M7 |
Pneumatic connection, port 4 | M7 |
Pneumatic connection, port 5 | M7 |
Materials note | Conforms to RoHS |
Material seals | NBR |
Material housing | Aluminium die cast |
manufacturer | FESTO |
dimensions | 0 x 0 x 0 |
Weight | 0.06 kg |
working pressure [bar] | -0,9÷10 |
type | solenoid valve |
country of origin | Germany |
valve function | 5/2-way, monostable |
direction of flow | reversible |
pilot air supply | external |
pilot pressure [bar] | 3÷8 |
duty cycle | 100 % |
working medium | Sprężone powietrze wg ISO8573-1:2010 [7:4:4] |
