Insert ball bearing

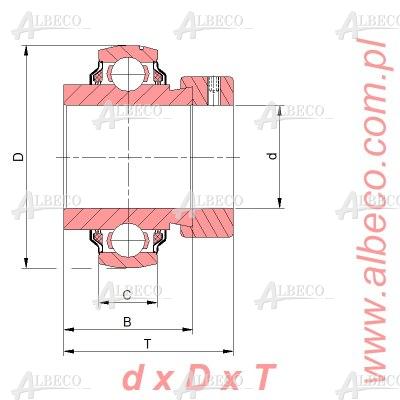

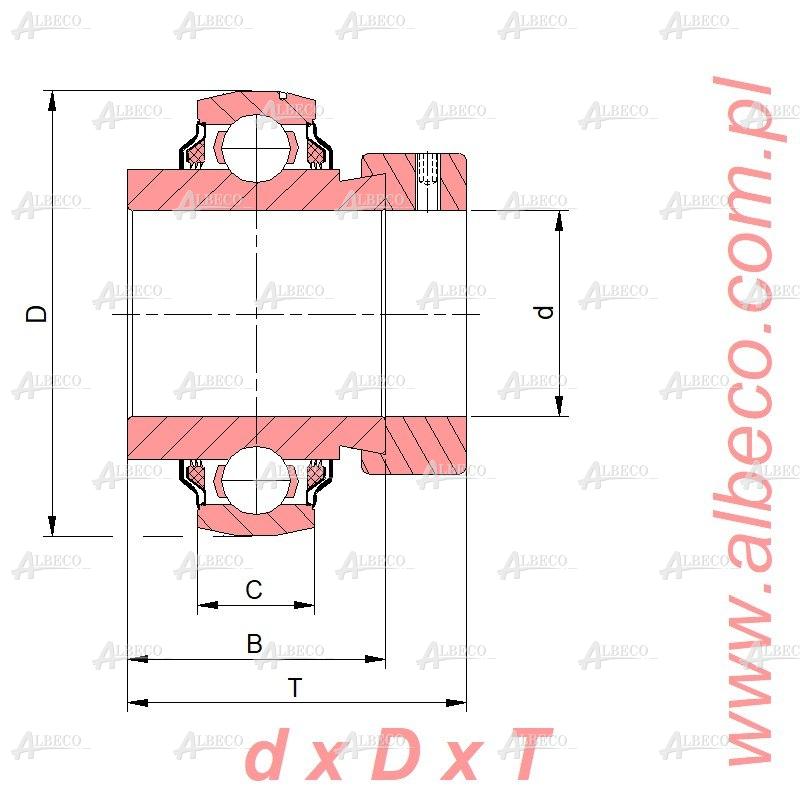

dimensions | 35 x 72 x 51.1 |
Weight | 0.611 kg |
C - outer ring width (insert bearing) [mm] | 20 |
cage | steel |
clearence | C3 - greater than normal |
country of origin | China |
Dynamic load rating [N] | 25700 |
d [mm] | 35 |
D [mm] | 72 |
inner ring width [mm] | 37,6 |
rounded outer ring | yes |
sealing | dedicated to agriculture, for heavily polluted applications. Low rotation speeds |
static load rating [N] | 15200 |

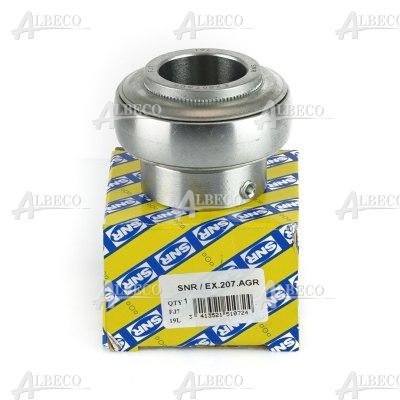

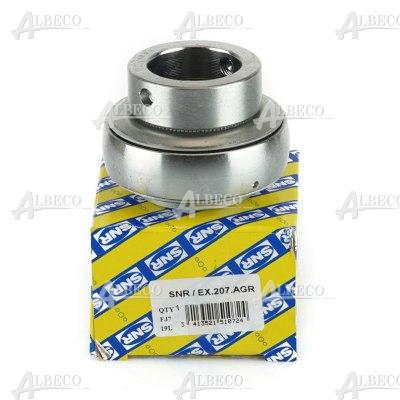

EX207AGR SNR
Insert ball bearing
manufacturer | SNR |
dimensions | 35 x 72 x 51.1 |
Weight | 0.611 kg |
inner ring width [mm] | 37,6 |
C - outer ring width (insert bearing) [mm] | 20 |
d [mm] | 35 |
D [mm] | 72 |
clearence | C3 - greater than normal |
T [mm] | 51.1 |
type | insert ball bearing |
sealing | dedicated to agriculture, for heavily polluted applications. Low rotation speeds |
rounded outer ring | yes |
Dynamic load rating [N] | 25700 |
static load rating [N] | 15200 |
cage | steel |
country of origin | China |
Technical materials
