You are here: Power transmission Couplings Taper-lock sleeves TAPER LOCK 2012-45 SIT

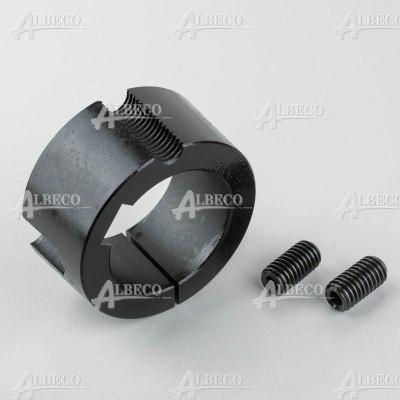

Taper-lock bush

TAPER LOCK 2012-45 SIT

Name: TAPER LOCK 2012-45 SIT
Rating: 4.6 (2 reviews)

BC2012F45 CONTITECH

dimensions	45 x 70 x 31.8
Weight	0.45 kg
b [mm]	14
country of origin	China
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
screw tightening torque [Nm]	30.4
t2 [mm]	3.8
transmissible torque moment [Nm]	808
type	taper-lock bush

Plewiska (11)

on stock

Attributes Substitutes (2)

TAPER LOCK 2012-45 SIT

Taper-lock bush

manufacturer	SIT
dimensions	45 x 70 x 31.8
Weight	0.45 kg
b [mm]	14
feature	taper lock bush for mounting pulleys
feature	4 holes
material	grey cast iron
screw tightening torque [Nm]	30.4
transmissible torque moment [Nm]	808
t2 [mm]	3.8
type	taper-lock bush
country of origin	China
