Data sheet:

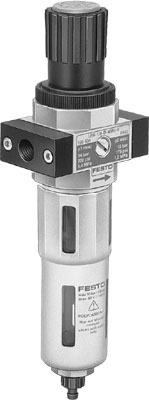

Name: LFR-D-MIDI FESTO
Rating: 4.7 (6 reviews)

Feature	Value
Size	Midi
Series	D
Actuator lock	Rotary knob with lock
Assembly position	Vertical +/- 5°
Grade of filtration	40 µm
Condensate drain	manual rotary
Design structure	Filter regulator without pressure gauge
Max. condensate volume	1.462 oz(l)
Bowl guard	Metal bowl guard
Pressure gauge	Prepared for G1/4
Operating pressure	13.8 ... 240 Psi
Pressure regulation range	6.9 ... 180 Psi
Max. pressure hysteresis	3 Psi
Standard nominal flow rate	108.5 cfm
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Storage temperature	14 ... 140 °F
Air purity class at output	Compressed air in accordance with ISO8573-1:2010 [7:8:4] Inert gases
Medium temperature	14 ... 140 °F
Ambient temperature	14 ... 140 °F
Product weight	32.2 oz
Mounting type	Line installation with accessories Optional
Materials note	Conforms to RoHS
Material housing	Zinc die-casting
Material bowl	PC

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.948 kg
working pressure [bar]	0,95÷16,5
type	filter regulator
country of origin	Hungary
filtrowanie [μm]	40
zakres regulacji ciśnienia [bar]	0,475738÷12,4105
working medium	Gazy obojętne, sprężone powietrze wg ISO 8573-1:2010 [-:9:-]
condensate drain	manually rotating
