Alignment Tool

Weight

5.29 kg

application

Horizontal shafts, soft foot.

battery life

Measuring units: up to 16 hours, Display unit: up to 8 hours (100% backlight).

country of origin

Germany

includes

TDTC 1/C - SKF Tool Case, size C, generic, no inlay, empty

includes

TKSA 41-DU - 1x TKSA 41 Display Unit

includes

TKSA 41-M - 1x TKSA 41 M Measuring Unit (including. 1x USB Cable)

includes

TKSA 41-QR - 5x A5 sheets with 6x QR codes per sheet (total of 30x unique stickers)

includes

TKSA 41-S - 1x TKSA 41 S Measuring Unit (including. 1x USB Cable)

includes

TKSA 41-STDCH - 2x 400 mm (15.8 in) standard chains for TKSA 31/41

includes

TKSA EXTCHARG - 1x Power supply with EU, US, UK, AUS

includes

TKSA ROD90 - 4x 90 mm (3.5 in) rods threaded

Details Attributes Substitutes (2)

TKSA 41 SKF

Alignment Tool

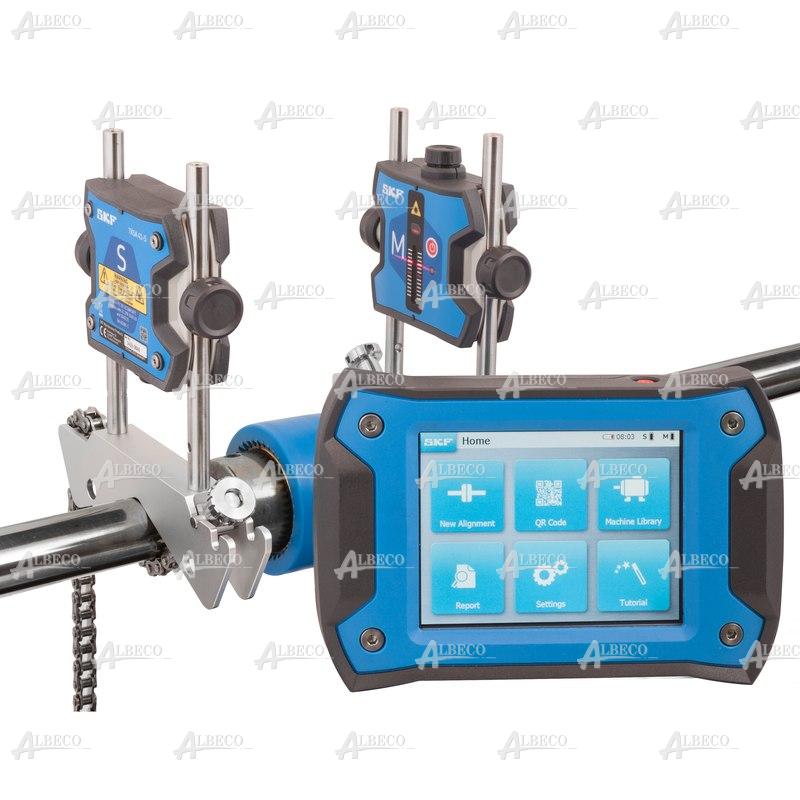

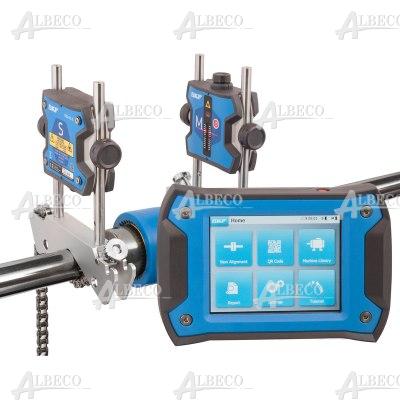

The SKF Shaft Alignment Tool TKSA 41 is an easy to use laser alignment system for achieving accurate alignment of two connected shafts. With two wireless measurement units, large sized detectors and powerful lasers, the instrument performs precise measurements in even most challenging industrial environments. The easy to use display device helps users to quickly check and correct shaft alignments and improve the machine performance and reliability.

Intuitive touch display device for usage in industrial environments
Wireless measuring units allow easy handling and more measurement flexibility
Free measurement gives full alignment flexibility as measurement positions can be chosen freely and only 90° shaft rotation is required.
Live view supports all alignment measurements and corrections Automatic alignment reports are saved in the machine library and can be customised with notes, pictures and QR code.
All reports can be exported as pdf.
The built-in camera allows pictures to be taken for reports.
Machine identification is facilitated with automatic QR code identification and machine pictures in the library.

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	5.29 kg
shaft diameter [mm]	20 to 150 mm, up to 300 mm with optional extension chains (not included)
type	alignment tool
used with	TKSA 41-EXTCH - 2x 500 mm (19.7 in) extension chains
used with	TKSA EXT100 - 2x 100 mm (3.9 in) offset brackets compatible with standard and magnetic V-brackets and magnetic base
used with	TKSA EXT50 - 2x 50 mm (2 in) offset brackets compatible with standard and magnetic V-brackets and magnetic base
used with	TKSA MAGBASE - 2x Magnetic bases for use with offset brackets
used with	TKSA MAGVBK - 2x Magnetic V-brackets (No rods, no chain supplied)
used with	TKSA ROD150 - 4x 150 mm (5.9 in) rods threaded
used with	TKSA SLDBK - 2x Sliding wheels for non-rotating shafts to be mounted on standard V-bracket (No Bracket supplied)
application	Horizontal shafts, soft foot.
includes	TDTC 1/C - SKF Tool Case, size C, generic, no inlay, empty
includes	TKSA 41-DU - 1x TKSA 41 Display Unit
includes	TKSA 41-M - 1x TKSA 41 M Measuring Unit (including. 1x USB Cable)
includes	TKSA 41-QR - 5x A5 sheets with 6x QR codes per sheet (total of 30x unique stickers)
includes	TKSA 41-S - 1x TKSA 41 S Measuring Unit (including. 1x USB Cable)
includes	TKSA 41-STDCH - 2x 400 mm (15.8 in) standard chains for TKSA 31/41
includes	TKSA EXTCHARG - 1x Power supply with EU, US, UK, AUS
includes	TKSA ROD90 - 4x 90 mm (3.5 in) rods threaded
includes	TKSA VBK - 2x Standard V-brackets (No rods, no chain supplied)
protection class	IP54
battery life	Measuring units: up to 16 hours, Display unit: up to 8 hours (100% backlight).
country of origin	Germany
