HD14-3M09 SIT

14-3M-09 SIT
PH14-3M09 CONTITECH

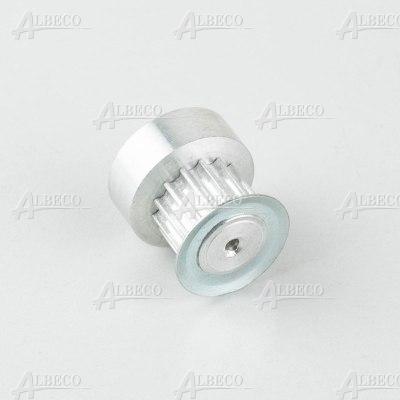

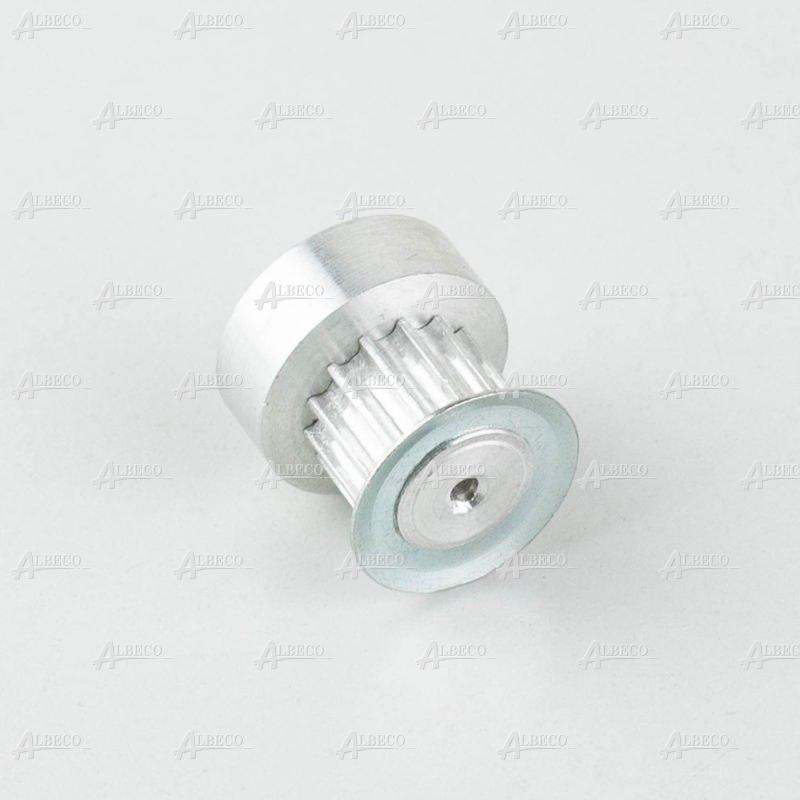

Pulley

dimensions	0 x 12.61 x 10.2
Weight	0.008 kg
bo - belt width [mm]	9
country of origin	China

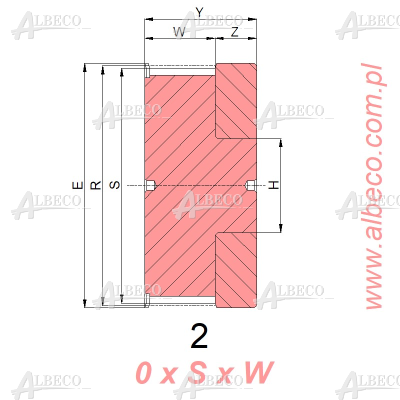

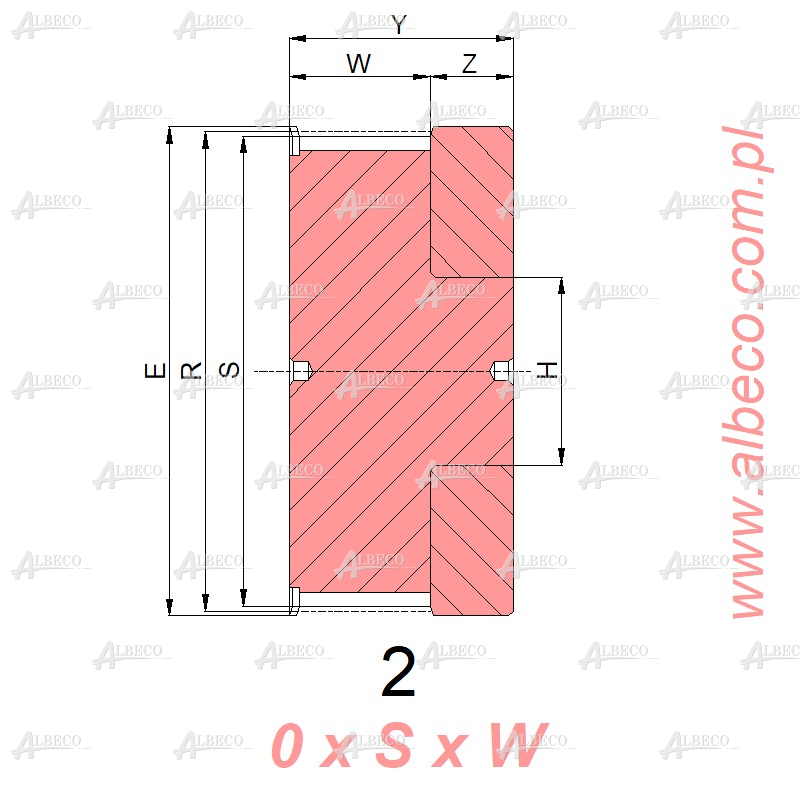

execution	2
E [mm]	16
feature	with hub
feature	pulley with flanges
feature	pulley with center holes
feature	on request, we provide full CNC machining according to drawing
H [mm]	18
material	aluminium
number of teeth [szt.]	14

HD14-3M09 SIT

Pulley

manufacturer	SIT
dimensions	0 x 12.61 x 10.2
Weight	0.008 kg
bo - belt width [mm]	9
feature	with hub
feature	pulley with flanges
feature	pulley with center holes
feature	on request, we provide full CNC machining according to drawing
E [mm]	16
H [mm]	18
number of teeth [szt.]	14
material	aluminium
S [mm]	12.61
type	pulley
W [mm]	10.2
Y [mm]	17.5
Z - depth [mm]	7.3
execution	2
profile	3M
R [mm]	13.37
country of origin	China
