HD60-8M30 SIT

60-8M-30 SIT
PH60-8M30 CONTITECH

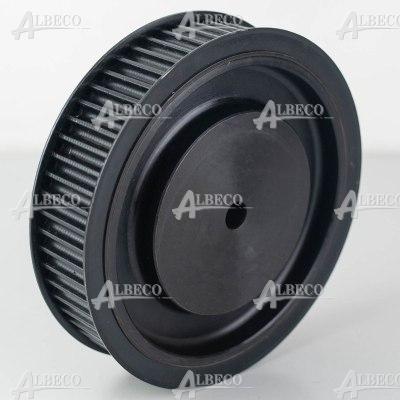

Pulley

dimensions	0 x 151.42 x 38
Weight	4.38 kg
bo - belt width [mm]	30
country of origin	China
ds [mm]	12
d [mm]	12

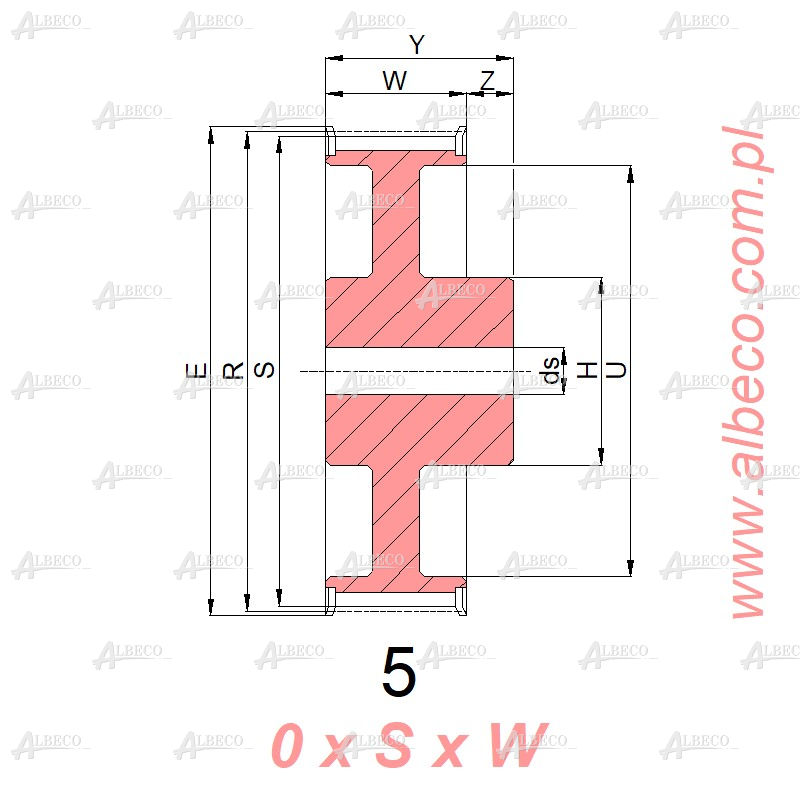

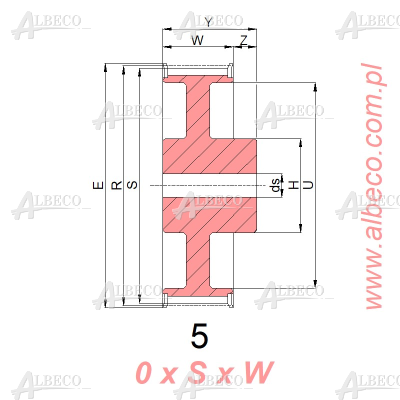

execution	5
E [mm]	158
feature	with hub
feature	pulley with flanges
feature	pre-bore
feature	on request, we provide full CNC machining according to drawing
H [mm]	90

HD60-8M30 SIT

Pulley

manufacturer	SIT
dimensions	0 x 151.42 x 38
Weight	4.38 kg
bo - belt width [mm]	30
feature	with hub
feature	pulley with flanges
feature	pre-bore
feature	on request, we provide full CNC machining according to drawing
d [mm]	12
E [mm]	158
H [mm]	90
number of teeth [szt.]	60
material	carbon steel C45 / 1.0503 / AISI1045
S [mm]	151.42
type	pulley
W [mm]	38
Y [mm]	48
Z - depth [mm]	10
execution	5
profile	8M
ds [mm]	12
R [mm]	152.79
U [mm]	127
country of origin	China
