DSR-25-180-P FESTO

11911 FESTO

Weight

0.579 kg

country of origin

Germany

kąt obrotu [°]

thread

type

rotary actuator

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:-:-]

working pressure [bar]

1,5÷8

zakres nastawy kąta obrotu [°]

Details Attributes

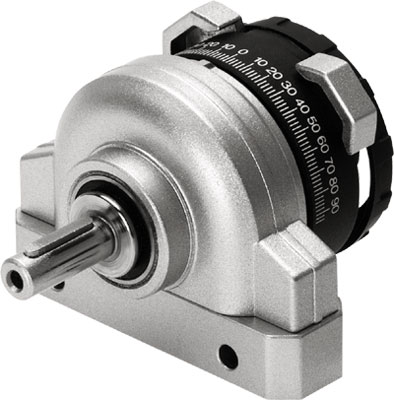

DSR-25-180-P FESTO

Rotary actuator

Data sheet:

Name: DSR-25-180-P FESTO
Rating: 4.9 (7 reviews)

Feature	Value
Size	25
Cushioning angle	1.8 deg
Rotation angle adjustment range	0 ... 180 deg
Swivel angle	0 ... 180 deg
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Mode of operation	double-acting
Design structure	Rotary vane
Position detection	No
Operating pressure	1.5 ... 8 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)	3 Hz
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Ambient temperature	-10 ... 60 °C
Theoretical torque at 0.6 MPa (6 bar, 87 psi)	5 Nm
Product weight	500 g
Mounting type	with through hole
Pneumatic connection	M5
Material of drive shaft	Steel Nickel plated
Material seals	NBR

manufacturer	FESTO
dimensions	0 x 0 x 0
Weight	0.579 kg
working pressure [bar]	1,5÷8
thread	M5
type	rotary actuator
country of origin	Germany
kąt obrotu [°]	0
zakres nastawy kąta obrotu [°]	0
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-]
