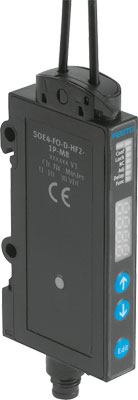

SOE4-FO-D-HF2-1P-M8 FESTO
(norm: EN 60947-5-2)
Feature | Value |
---|---|
Design | Block design |
Conforms to standard | EN 60947-5-2 |
Authorisation | RCM Mark c UL us - Listed (OL) |
CE mark (see declaration of conformity) | to EU directive for EMC |
Materials note | Free of copper and PTFE |
Measured variable | Position |
Measuring principle | Optoelectronic |
Measurement method | Fibre-optic unit |
Type of light | Red |
Mutual influence | Protected Up to four devices mounted directly next to one another |
Ambient temperature | -20 ... 60 °C |
Switch output | PNP |
Switching element function | Switchable |
Max. switching frequency | Standard Mode 1000 Hz Fine Mode 125 Hz Fast Mode 8000 Hz High Distance Mode 125 Hz |
Max. output current | 100 mA |
Voltage drop | <= 2.4 V |
Display | 0000 - 4093 |
Timer function | 1 - 2000 ms |
Short circuit strength | Pulsing |
Operating voltage range DC | 10 ... 30 V |
Residual ripple | 10 % |
Idle current | <= 25 mA |
Polarity protected | For all operating voltage connections |
Electrical connection | 4-pin M8x1 Plug |
Mounting type | with through hole with top-hat rail |
Assembly position | Any |
Product weight | 17 g |
Material housing | ABS |
Display | LED - display |
Ready status display | Green LED |
Operating status display | Yellow LED |
Setting options | Teach-In Teach-in via electrical connection |
Protection class | IP64 |
Insulation voltage | 50 V |
Corrosion resistance classification CRC | 4 - Very high corrosion stress |
manufacturer | FESTO |
dimensions | 0 x 0 x 0 |
Weight | 0.04 kg |
norm | EN 60947-5-2 |
type | czujnik |
max. operating frequency [Hz] | 0 |
