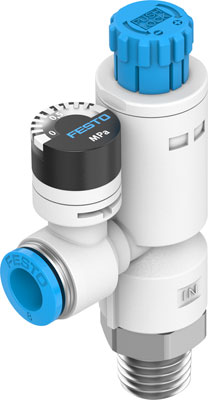

VRPA-LM-R18-Q6 FESTO
Reducer
Feature | Value |
---|---|
Controller function | Output pressure constant with secondary exhaust with return flow |
Pneumatic connection, port 1 | R1/8 |
Pneumatic connection, port 2 | QS-6 |
Mounting type | Threaded |
Standard nominal flow rate | 100 l/min |
Ambient temperature | 0 ... 60 °C |
Material housing | PBT |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
Assembly position | Any |
Type of actuation | manual |
Type of seal on screw-in stud | coating |
Adjusting element | Rotary knob with lock |
Ability to swivel | 360° / no continuous swivelling permissible |
Pressure gauge | with pressure gauge |
Pressure regulation range | 0.1 ... 0.8 MPa |
Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
Product weight | 29 g |
Material of threaded plug | Nickel-plated brass |
Materials note | Conforms to RoHS |
Material of threaded seal | PTFE |
Material static seals | NBR |
manufacturer | FESTO |
dimensions | 0 x 0 x 0 |
Weight | 0.03 kg |
type | reducer |
country of origin | Japan |
zakres regulacji ciśnienia [bar] | 1÷8 |
working medium | Sprężone powietrze wg ISO8573-1:2010 [7:4:4] |
