DFM-12-40-P-A-KF FESTO

170903 FESTO 170903 FESTO

dimensions

12 x 0 x 40

Weight

0.45 kg

country of origin

Germany

max. velocity [m/s]

0.8

piston diameter

12 mm

static moment rating about X axis [Nm]

16.48

static moment rating about Y axis [Nm]

8.44

static moment rating about Z axis [Nm]

8.44

stroke [mm]

thread

type

pneumatic cylinder

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

2÷10

Details Attributes

DFM-12-40-P-A-KF FESTO

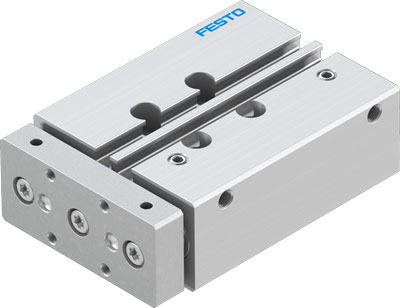

Pneumatic cylinder

Data sheet:

Name: DFM-12-40-P-A-KF FESTO
Rating: 5 (6 reviews)

Feature	Value
Centre of gravity distance from working load to yoke plate	25 mm
Stroke	40 mm
Piston diameter	12 mm
Operating mode of drive unit	Yoke
Cushioning	P: Flexible cushioning rings/plates at both ends
Assembly position	Any
Guide	Recirculating ball bearing guide
Design structure	Guide
Position detection	For proximity sensor
Operating pressure MPa	0.2 ... 1 MPa
Operating pressure	2 ... 10 bar
Max. speed	0.8 m/s
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	0 - No corrosion stress
Ambient temperature	-5 ... 60 °C
Impact energy in end positions	0.07 Nm
Max. force Fy	292 N
Max. force Fy static	804 N
Max. force Fz	292 N
Max. force Fz static	804 N
Max. torque Mx	5.99 Nm
Max. torque Mx static	16.48 Nm
Max. torque My	3.07 Nm
Max. torque My static	8.44 Nm
Max. torque Mz	3.07 Nm
Max. torque Mz static	8.44 Nm
Max. permissible torque load Mx as a function of the stroke	0.81 Nm
Max. useful load as a function of the stroke at defined distance xs	31 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting	51 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance	68 N
Moving mass	196 g
Product weight	480 g
Centre of gravity of the moving mass as a function of the stroke	25.3 mm
alternative connections	See product drawing
Pneumatic connection	M5
Materials note	Free of copper and PTFE Conforms to RoHS
Material cover	Wrought Aluminium alloy
Material seals	NBR
Material housing	Wrought Aluminium alloy
Material piston rod	High alloy steel, non-corrosive

Attributes

manufacturer	FESTO
dimensions	12 x 0 x 40
Weight	0.45 kg
working pressure [bar]	2÷10
thread	M5
stroke [mm]	40
piston diameter	12 mm
type	pneumatic cylinder
max. velocity [m/s]	0.8
country of origin	Germany
static moment rating about X axis [Nm]	16.48
static moment rating about Y axis [Nm]	8.44
static moment rating about Z axis [Nm]	8.44
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
