TMMA 120 SKF

Weight

11.88 kg

capacity [t]

compatible with

TMHS 100

country of origin

Hungary

max. shaft lenght [mm]

250

type

mechanical puller

used with

TMMS 50 SKF

used with

TMMS 100 SKF

used with

TMMS 160 SKF

width of grip external, maximum [mm]

250

width of grip external, minimum [mm]

Details Attributes Substitutes (1)

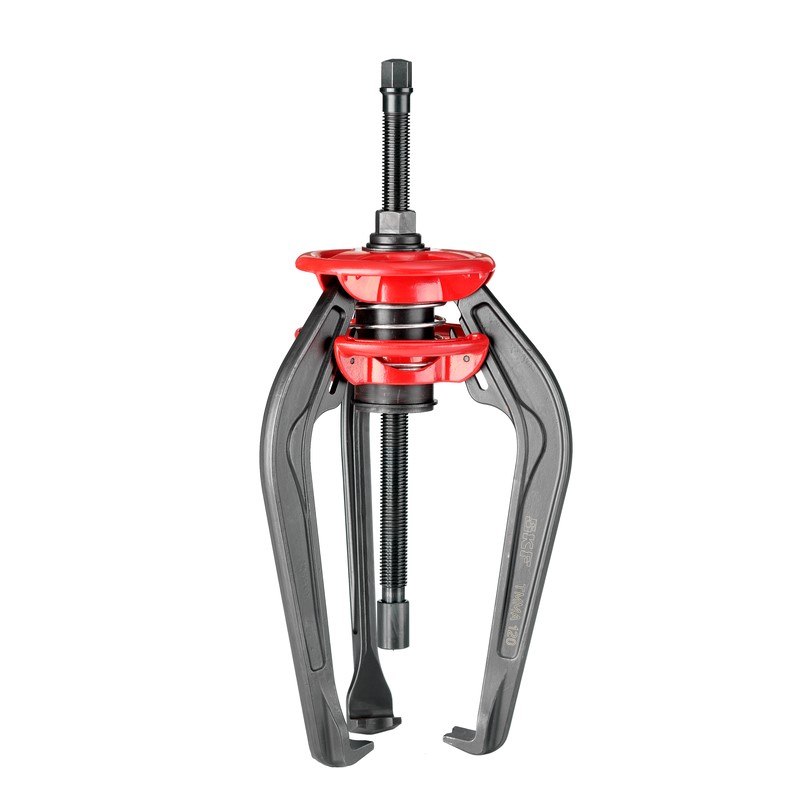

TMMA 120 SKF

Mechanical puller

The SKF EasyPull TMMA 120 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component with just one movement. The TMMA 120 is mechanically operated and capable of withdrawl forces up to 120 kN for components with a maximum outer diameter of 250 mm (9.8 in).

Unique red rins spring-operated opening mechanism allow the TMMA 120 to be placed behind the component with just one movement.
Self-centring capability and nosepiece help to avoid damae to shaft.
Self-locking arms help to prevent puller slippin under load.
Sturdy desing allows safe dismounting of components in the tihtest applications.
Hydraulic force enerators TMHS 100 available as an accessory.

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	11.88 kg
max. shaft lenght [mm]	250
capacity [t]	12
type	mechanical puller
used with	TMMS 50 SKF
used with	TMMS 100 SKF
used with	TMMS 160 SKF
compatible with	TMHS 100
width of grip external, maximum [mm]	250
width of grip external, minimum [mm]	75
country of origin	Hungary

Technical materials

Product's substitutes

483-5 KUKKO

Mechanical puller

0 x 0 x 0
