Pulley alignment tool

Weight

1.32 kg

battery life

20 hours continuous operation.

country of origin

Sweden

includes

Jednostka nadawcza, jednostka odbiorcza, zestaw baterii AAA, 1x TKBA 40 transmitter unit, 1x TKBA 40 receiver unit, 2x AAA batteries, 4x sizes of V-uides, 3x pairs of each size, 1x Printed instructions for use, 1x Calibration certificate

material

aluminium

protection class

IP40

type

pulley alignment tool

Details Attributes Substitutes (1)

TKBA 40 SKF

Pulley alignment tool

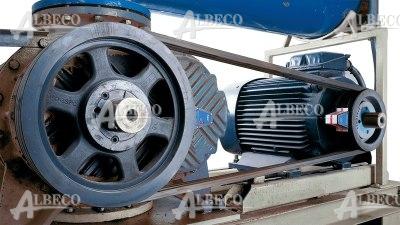

The SKF Belt Alignment Tool TKBA 40 aligns V-belt pulleys in the grooves. V–guides and powerful magnets allow the TKBA 40 to be fitted in the grooves of the pulley. With only two components, a laser–emitting unit and a receiver unit, the belt alignment tool is easy to use and allows fast and accurate belt alignments. The three-dimensional target area on the receiver unit help the easy detection of misalignment as well as its nature; whether it is horizontal, vertical, parallel or a combination of all three.

Powerful magnets allow fast and easy attachment.
Three-dimensional taret area simplifies detection and correction of misAlignments.
Facilitates simultaneous adjustment of tension and Alignment.
V-uides included for a wide rane of V-belt pulleys.
Alins rooves of a V-belt pulley rather than its face, allowing optimum Alignment of pulleys of unequal width or with dissimilar faces.
Special side adaptor for Alignments of multi-ribbed and timin belt pulleys as well as sprockets is available as accessory

manufacturer	SKF
dimensions	0 x 0 x 0
Weight	1.32 kg
material	aluminium
type	pulley alignment tool
includes	Jednostka nadawcza, jednostka odbiorcza, zestaw baterii AAA, 1x TKBA 40 transmitter unit, 1x TKBA 40 receiver unit, 2x AAA batteries, 4x sizes of V-uides, 3x pairs of each size, 1x Printed instructions for use, 1x Calibration certificate
protection class	IP40
battery life	20 hours continuous operation.
country of origin	Sweden
