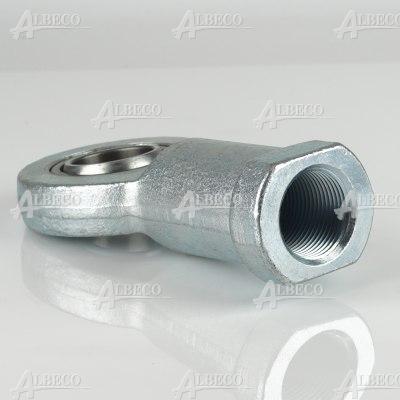

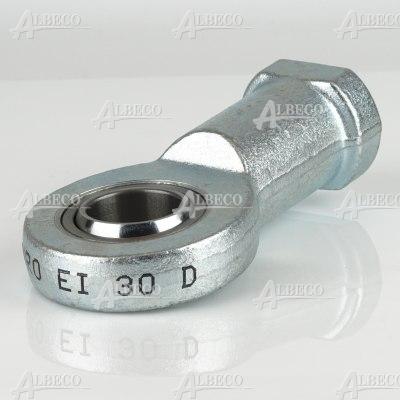

Rod end

EI 30 D FLURO

dimensions 30 x 0 x 0
Weight 1.001 kg

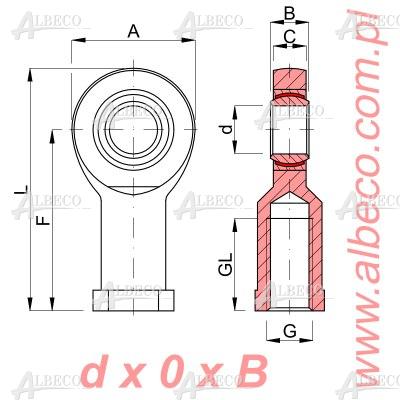

A - rod end outer diameter [mm] 73
C - outer ring width [mm] 19
country of origin Germany
F - height to the axis [mm] 110
friction pair steel/PTFE
GL - thread length [mm] 56
inner ring width [mm] 22
L - rod head height [mm] 146.5
thread M30x2
thread 2 internal thread, right
type rod end
Plewiska (14)

on stock
manufacturer FLURO
dimensions 30 x 0 x 0
Weight 1.001 kg
A - rod end outer diameter [mm] 73
inner ring width [mm] 22
C - outer ring width [mm] 19
F - height to the axis [mm] 110
GL - thread length [mm] 56
thread M30x2
L - rod head height [mm] 146.5
friction pair steel/PTFE
type rod end
country of origin Germany
thread 2 internal thread, right
