You are here: Bearings Ball bearings Angular contact ball bearings B7028-C-T-P4S-UL FAG

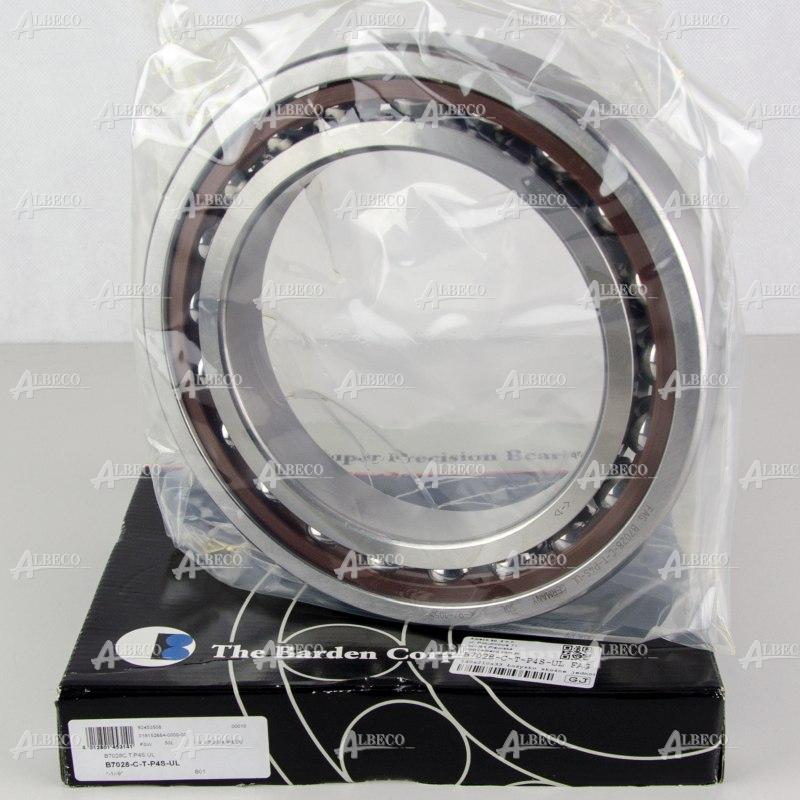

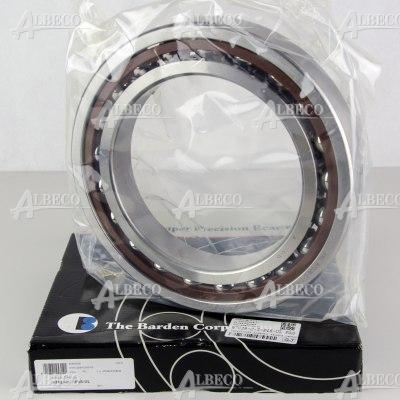

Single row angular-contact ball bearing, high precision bearing

B7028-C-T-P4S-UL FAG

dimensions 140 x 210 x 33
Weight 3.6 kg
bearing arrangement for universal matching
cage textolite, outer ring centred
contact angle [°] 15
country of origin Germany
Dynamic load rating [N] 153000
limiting/attainable speed, grease [rpm] 6300
limiting/attainable speed, oil [rpm] 10000
precision better than P4
preload light preload
product feature high precision bearing
rolling element material big steel balls
Plewiska (10)

on stock

B7028-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

Attributes
manufacturer FAG
dimensions 140 x 210 x 33
Weight 3.6 kg
type single row angular-contact ball bearing
sealing none
product feature high precision bearing
Dynamic load rating [N] 153000
static load rating [N] 114000
contact angle [°] 15
cage textolite, outer ring centred
preload light preload
bearing arrangement for universal matching
precision better than P4
country of origin Germany
limiting/attainable speed, oil [rpm] 10000
limiting/attainable speed, grease [rpm] 6300
rolling element material big steel balls

Technical materials

Product's substitutes
Product
dimensions
availability
Net price

7028 CD/P4ADGA SKF

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

140 x 210 x 33

7028 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

140 x 210 x 33

in stock

Plewiska: 2 pcs

7028CTRDULP3 NSK

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

140 x 210 x 33

in stock

Plewiska: 2 pair

B7028-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

140 x 210 x 33
