You are here: Pneumatics and hydraulics Directional control valves QSLV2-1/8-6 FESTO

Directional control valve

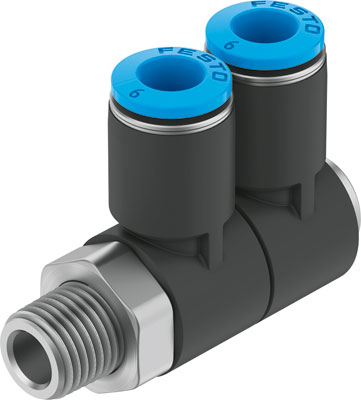

QSLV2-1/8-6 FESTO

153212 FESTO 153212 FESTO
dimensions 6 x 0 x 0
Weight 0.03 kg
colour colour of release ring blue
country of origin Taiwan
material POM
type directional control valve
working medium Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com
Plewiska (10)

on stock

QSLV2-1/8-6 FESTO

Directional control valve

Data sheet:




Feature Value
Size Standard
Nominal size 3.2 mm
Type of seal on screw-in stud coating
Assembly position Any
Design structure Push/pull principle
Operating pressure complete temperature range -0.95 ... 6 bar
Temperature dependent operating pressure -0.95 ... 14 bar
Maritime classification see certificate
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 - Low corrosion stress
Ambient temperature -10 ... 80 °C
Product weight 28 g
Number of outputs 2
Number of supply lines 1
Pneumatic connection, port 1 Male thread R1/8
Pneumatic connection, port 2 For tubing outside diameter 6 mm
Colour of release ring blue
Materials note Conforms to RoHS
Material housing PBT
Material release ring POM
Material of tubing seal NBR
Material of tube retaining claw High alloy steel, non-corrosive
Attributes
manufacturer FESTO
dimensions 6 x 0 x 0
Weight 0.03 kg
colour colour of release ring blue
material POM
type directional control valve
country of origin Taiwan
working medium Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com
