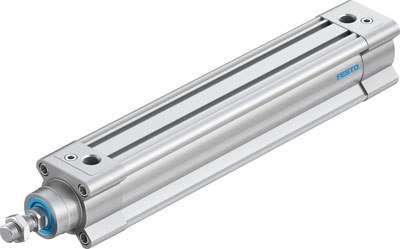

DSBC-40-200-PPVA-N3 FESTO

1376663 FESTO

Pneumatic cylinder (norm: ISO 15552)

dimensions

40 x 0 x 200

Weight

1.447 kg

country of origin

Germany

material

galvanized steel

materiał łożyskowania

POM

norm

ISO 15552

piston diameter

stroke [mm]

200

thread

G 1/4

thread

M12x1,25

type

pneumatic cylinder

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:4:4]

working pressure [bar]

0,6÷12

Details Attributes Substitutes (1)

DSBC-40-200-PPVA-N3 FESTO

Pneumatic cylinder (norm: ISO 15552)

Data sheet:

Feature	Value
Stroke	200 mm
Piston diameter	40 mm
Piston rod thread	M12x1,25
Cushioning	PPV: Pneumatic cushioning adjustable at both ends
Assembly position	Any
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design structure	Piston Piston rod Profile barrel
Position detection	For proximity sensor
Variants	Single-ended piston rod
Operating pressure MPa	0.06 ... 1.2 MPa
Operating pressure	0.6 ... 12 bar
Mode of operation	double-acting
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC	2 - Moderate corrosion stress
Ambient temperature	-20 ... 80 °C
Impact energy in end positions	0.7 J
Cushioning length	19 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting	633 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance	754 N
Moving mass with 0 mm stroke	205 g
Additional weight per 10 mm stroke	37 g
Basic weight for 0 mm stroke	740 g
Additional mass factor per 10 mm of stroke	16 g
Mounting type	with internal (female) thread with accessories Optional
Pneumatic connection	G1/4
Materials note	Conforms to RoHS
Material cover	Die-cast aluminium, coated
Material piston seal	TPE-U(PU)
Material piston	Wrought Aluminium alloy
Material piston rod	High alloy steel
Material piston rod wiper seal	TPE-U(PU)
Buffer seal material	TPE-U(PU)
Cushion piston material	POM
Material cylinder barrel	Smooth-anodised wrought aluminium alloy
Material nut	steel, galvanized
Material bearing	POM
Material of flange screw	steel, galvanized

manufacturer	FESTO
dimensions	40 x 0 x 200
Weight	1.447 kg
working pressure [bar]	0,6÷12
thread	G 1/4
thread	M12x1,25
material	galvanized steel
norm	ISO 15552
stroke [mm]	200
piston diameter	0
type	pneumatic cylinder
country of origin	Germany
materiał łożyskowania	POM
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:4:4]
