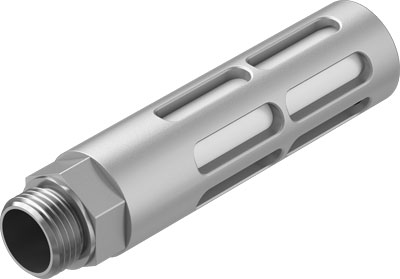

U-1/2-B FESTO
Silencer
Feature | Value |
---|---|
Assembly position | Any |
Operating pressure complete temperature range | 0 ... 10 bar |
Flow rate to atmosphere | 7,500 l/min |
Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance classification CRC | 1 - Low corrosion stress |
Sound pressure level | 81 dB(A) |
Ambient temperature | -10 ... 70 °C |
Product weight | 75 g |
Pneumatic connection | G1/2 |
Material of silencer insert | PE |
Material of threaded plug | Aluminium |
Materials note | Free of copper and PTFE Conforms to RoHS |
Material housing | Aluminium |
manufacturer | FESTO |
dimensions | 0 x 0 x 0 |
Weight | 0.07 kg |
thread | G 1/2 |
type | silencer |
country of origin | China |
working medium | Sprężone powietrze wg ISO8573-1:2010 [7:-:-] |
