PFI - Solution for Agriculture

SPECIAL BALL BEARINGS FOR AGRICULTURE - AGRI SERIES:

Main applications: Disc harrows, seeders, mowers and combines. The precision seal design provides robust protection against loss of grease and the ingress of wet or abrasive contaminants. Relubricable versions: better adaptation to extremely humid environments.

The main advantages of the Agri series

• Single and double breasted.
• With round, square or hexagonal hole.
• With or without relubrication.
• With spherical or cylindrical outer ring.
• With a widened inner ring on one or both sides.

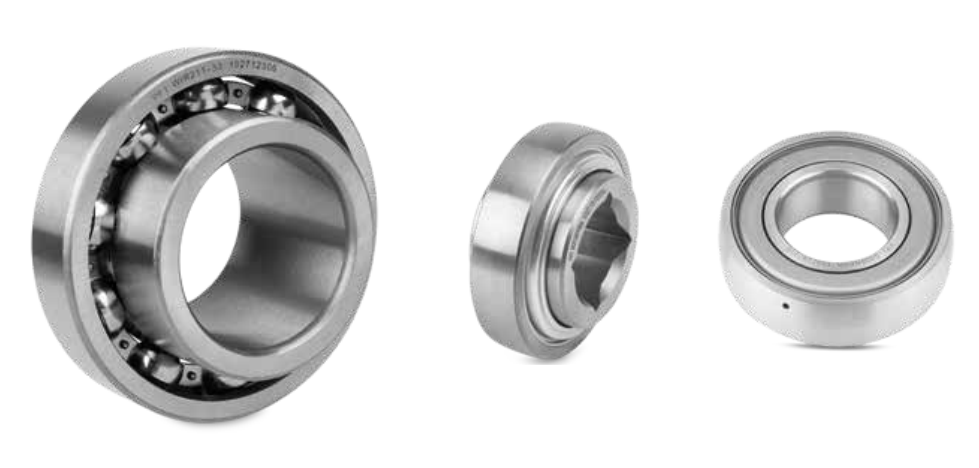

SELF-ADJUSTING BALL BEARINGS - Deep groove ball bearings

The vast majority of our self-aligning bearings are equipped with triple-lip seals - an advanced sealing system that can withstand the toughest conditions of heavy contamination, dust, moisture and abrasion. At the same time, it effectively retains the lubricant. Some of the most common uses: seed drills, tillage machines, combine harvesters, forage harvesters, bale chambers, etc.

• The internal design is the same as that of a single row deep groove ball bearing.
• Extended inner ring (on one or both sides) to provide additional shaft support.

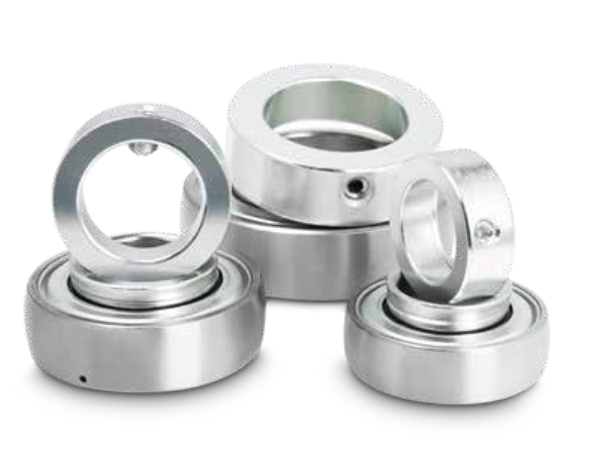

• Mounted on the shaft with a set screw or an eccentric clamping ring.
• Cylindrical or spherical outer rings.
• Relubricable (G) and non-relubricable configurations.

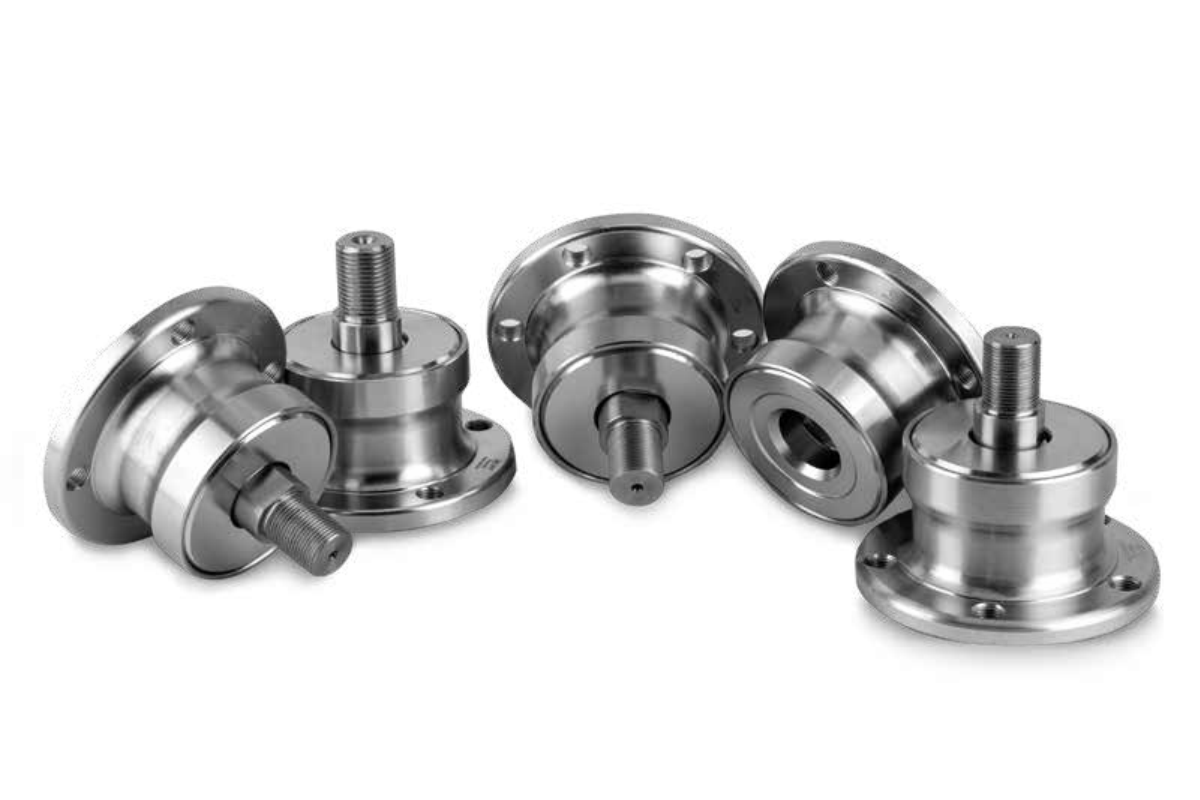

AGRI HUB
Difficult to cultivate soil? Take the fight to PFI Agri-Hubs!

High-performance, durable PFI bearing for disc harrows.

Our agri-hub configuration includes a double row angular contact ball bearing with an integrated forged steel flange and an advanced sealing system (& ldquo; mudblock & rdquo; seal) that is dust-proof while preventing the ingress of foreign objects, including moisture and water that could enter the machine if machine was pressure washed after use.

• Maintenance free.
• Lubricated and sealed for life.
• Sealing for maximum protection against dirt, dust, moisture.
• Easy to assemble and disassemble.
• Optimized inner bearing design.
• Increased load capacity.
• High stiffness minimizes disk tilt.
• Impact resistant.
• Increased productivity and life in the field.

FLANGED CAST IRON LUMINAIRES

Pedestals (UCP) are designed to provide shaft support where the mounting surface is parallel to the shaft axis and adjustment during mounting is done through the oblong holes.

Flanged housings (UCF) have a 4 bolt mounting system and are typically used when the shaft passes through the machine at right angles.

• Cast iron housings and bearing insert with wpressure windings.
• Triple lip seal.
• A bearing with a spherical outer ring compensates for angular misalignment.
• Long-term protection against heavily contaminated abrasives and corrosives !!

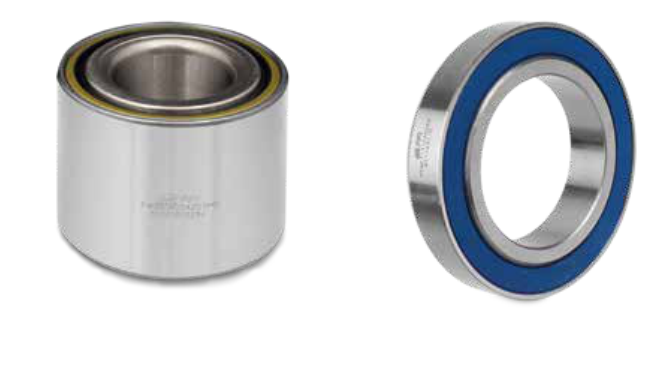

OTHER AGRICULTURAL BEARINGS:

Cost-effective, highly reliable, field-tested, long-life and increased productivity agricultural solutions support the farmer
and their productivity challenges, reducing downtime and maintenance costs while maximizing efficiency.

• Pressed steel flanged housings.
• Single and double row tapered roller bearings.
• Needle roller bearings.
• Clutch plates.
