You are here: Power transmission Couplings Precision and Cardan joints GU03E2C SIT
SG0S 102C
SG0S 102C
SG0S 102C
SG0S 102C
SG0S 102C
SG0S 102C

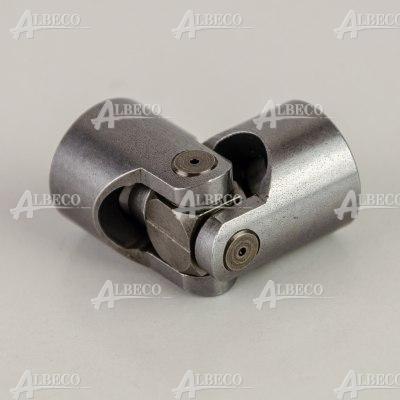

GU03E2C SIT

Precision joint

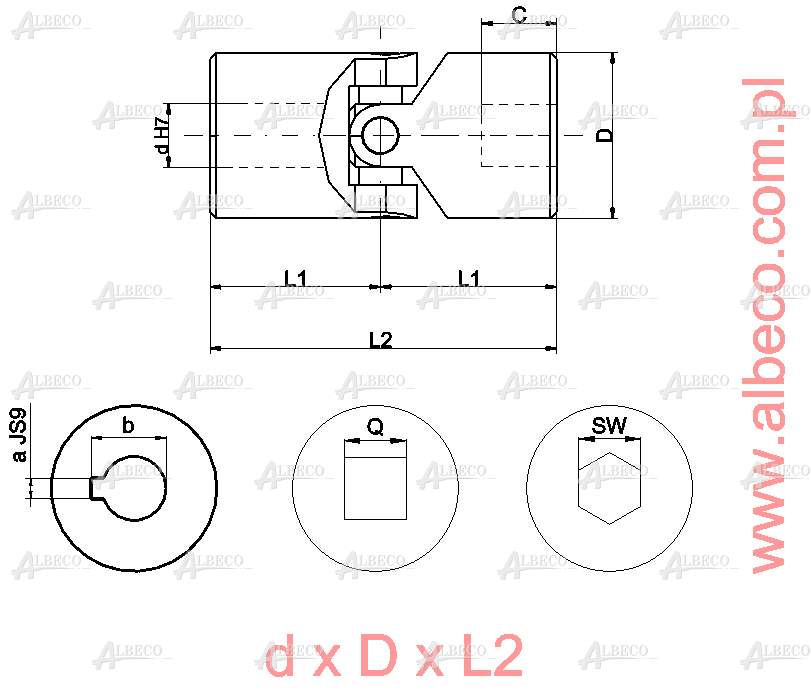

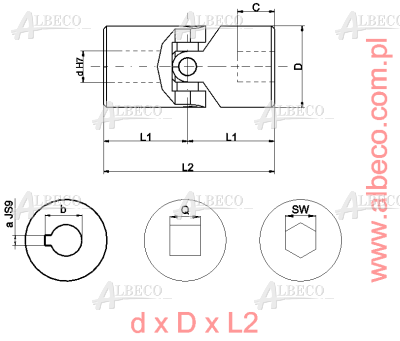

dimensions 10 x 22 x 48
Weight 0.098 kg
a [mm] 3
b [mm] 11.4
country of origin Italy
C [mm] 12
D [mm] 22
d [mm] 10
feature cardan joint, 2C - keyways on both sides
L1 [mm] 24
L2 [mm] 48
material steel
max. velocity [rpm] 1000
Plewiska (10)

on stock
Log in to see the price
Attributes

GU03E2C SIT

Precision joint

manufacturer SIT
dimensions 10 x 22 x 48
Weight 0.098 kg
a [mm] 3
b [mm] 11.4
C [mm] 12
feature cardan joint, 2C - keyways on both sides
d [mm] 10
D [mm] 22
L1 [mm] 24
L2 [mm] 48
material steel
norm DIN 808
max. velocity [rpm] 1000
type precision joint
used with GMU03M
country of origin Italy
