You are here: Bearings Ball bearings Angular contact ball bearings B7208-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

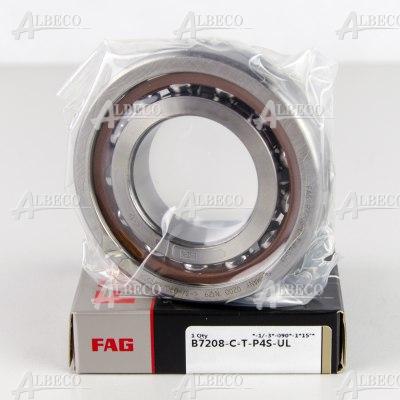

B7208-C-T-P4S-UL FAG

dimensions 40 x 80 x 18
Weight 0.371 kg
bearing arrangement for universal matching
cage textolite, outer ring centred
contact angle [°] 15
country of origin Germany
Dynamic load rating [N] 32500
limiting/attainable speed, grease [rpm] 18000
limiting/attainable speed, oil [rpm] 30000
precision better than P4
preload light preload
product feature high precision bearing
rolling element material big steel balls
Plewiska (16)

on stock

B7208-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

manufacturer FAG
dimensions 40 x 80 x 18
Weight 0.371 kg
type single row angular-contact ball bearing
sealing none
product feature high precision bearing
Dynamic load rating [N] 32500
static load rating [N] 16100
contact angle [°] 15
cage textolite, outer ring centred
preload light preload
bearing arrangement for universal matching
precision better than P4
country of origin Germany
limiting/attainable speed, oil [rpm] 30000
limiting/attainable speed, grease [rpm] 18000
rolling element material big steel balls

Technical materials

Product's substitutes
Product
dimensions
availability
Net price

7208 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 1 pcs

7208CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

7208CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 1 pcs

S6208 C TXM P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

7208CTRDULP3 NSK

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

7208 CYDU/GL P4 NACHI

Single row deep groove ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

in stock

Plewiska: 12 pair

7208 CYU/GL P4 NACHI

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

B7208-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

B7208-C-T-P4S-K5-UL FAG

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

B7208-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 3 pcs

S6208 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

in stock

Plewiska: 2 pair

S6208 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18
