You are here: Bearings Ball bearings Angular contact ball bearings S6208 C TA P4+ DUL GMN

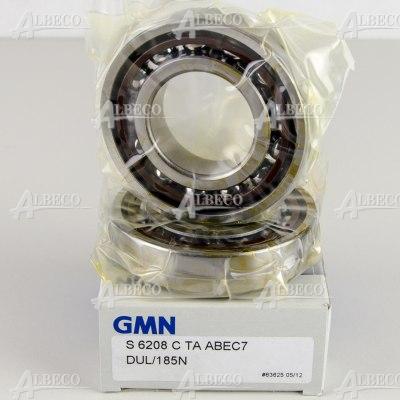

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

S6208 C TA P4+ DUL GMN

dimensions 40 x 80 x 18
Weight 0.74 kg
bearing arrangement universal matching pair
cage textolite, outer ring centred
contact angle [°] 15
country of origin Germany
Dw - rolling element diameter [mm] 11.906
Dynamic load rating [N] 36500
limiting/attainable speed, grease [rpm] 21500
limiting/attainable speed, oil [rpm] 28500
precision better than P4
preload light preload
product feature high precision ball bearings set, (two pcs)
Plewiska (2)

on stock

S6208 C TA P4+ DUL GMN

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

manufacturer GMN
dimensions 40 x 80 x 18
Weight 0.74 kg
type single row angular-contact ball bearing
product feature high precision ball bearings set, (two pcs)
Dynamic load rating [N] 36500
static load rating [N] 26000
contact angle [°] 15
cage textolite, outer ring centred
preload light preload
bearing arrangement universal matching pair
precision better than P4
Dw - rolling element diameter [mm] 11.906
country of origin Germany
limiting/attainable speed, oil [rpm] 28500
limiting/attainable speed, grease [rpm] 21500
rolling element material big steel balls
rings material steel

Technical materials

Product's substitutes
Product
dimensions
availability
Net price

7208 CDGA/P4A SKF

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 1 pcs

7208CG/GNP4 NTN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

7208CG1UJ74 SNR

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 1 pcs

S6208 C TXM P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

7208CTRDULP3 NSK

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

7208 CYDU/GL P4 NACHI

Single row deep groove ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

in stock

Plewiska: 12 pair

7208 CYU/GL P4 NACHI

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

B7208-C-T-P4S-DUL FAG

Single row angular-contact ball bearing, high precision ball bearings set, (two pcs)

40 x 80 x 18

B7208-C-T-P4S-K5-UL FAG

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

B7208-C-T-P4S-UL CSC

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 3 pcs

B7208-C-T-P4S-UL FAG

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18

in stock

Plewiska: 16 pcs

S6208 C TA P4+ UL GMN

Single row angular-contact ball bearing, high precision bearing

40 x 80 x 18
