QST-6 FESTO

153129 FESTO

dimensions

6 x 0 x 0

Weight

0.011 kg

colour

colour of release ring blue

country of origin

Japan

material

POM

type

t-distributor

working medium

Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com

Details Attributes

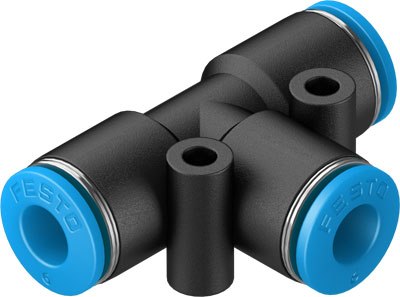

QST-6 FESTO

T-distributor

Data sheet:

Name: QST-6 FESTO
Rating: 4.5 (11 reviews)

Feature	Value
Size	Standard
Nominal size	4 mm
Assembly position	Any
Design structure	Push/pull principle
Operating pressure complete temperature range	-0.95 ... 6 bar
Temperature dependent operating pressure	-0.95 ... 14 bar
Maritime classification	see certificate
Operating medium	Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance classification CRC	1 - Low corrosion stress
Ambient temperature	-10 ... 80 °C
Product weight	11 g
Number of outputs	2
Number of supply lines	1
Pneumatic connection, port 1	For tubing outside diameter 6 mm
Pneumatic connection, port 2	For tubing outside diameter 6 mm
Colour of release ring	blue
Materials note	Conforms to RoHS
Material housing	PBT
Material release ring	POM
Material of tubing seal	NBR
Material of tube retaining claw	High alloy steel, non-corrosive

manufacturer	FESTO
dimensions	6 x 0 x 0
Weight	0.011 kg
colour	colour of release ring blue
material	POM
type	t-distributor
country of origin	Japan
working medium	Sprężone powietrze wg ISO8573-1:2010 [7:-:-], Woda zgodnie z deklaracją producenta na www.festo.com
